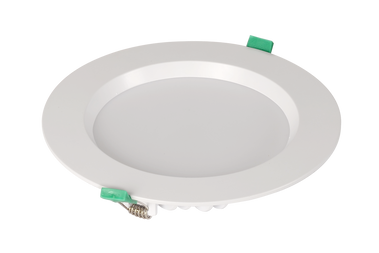

DALI SUPER NOVA
20 / 40W Commercial Downlight (180mm cutout)
Features
- Compatible with all DALI applications
- 20 / 40w switchable
- Die-cast aluminium downlight
- High efficiency SMD chips
- Constant current driver
- Non-dimmable
- 1.2m flex and plug included
- Tri-colour 3000k/4000k/5700k - switchable
- Internal/external IP44 rating
Dimensions
Specifications
| Order Code |
D40-DALI D40B-DALI |
| Model No |
AL8SNTC40W-DALI AL8SNTC40B-DALI |
| Input Voltage | 240v |
| Lumen Output | 2000/4000lm |
| IP Rating | IP44 |
|
Beam Angle |
100˚ |
|
Driver |
External driver |
|
Cutout |
170-205mm |
| Fitting Colour | White |
| Colour Temp | Tri-colour 3000k/4000k/5700k |
| Wattage | 20/40W |
| Dimming Options | Non-dimming |
| Flex and Plug | Yes |
| Body Type | Powder coated die-cast aluminium |
| Weight | 0.33kg |
